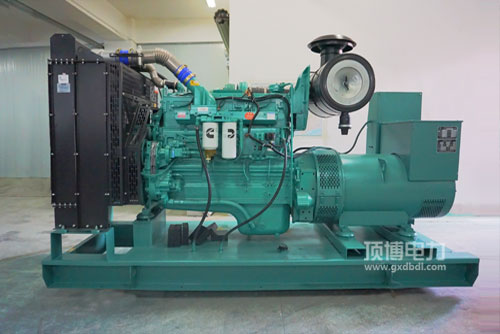

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用起思想气油第三产业性好: 优秀的气油调节整体，独到的STC、ESTC 等级调节整体，独特设计的连杆上端烧室，进行高压喷射式气油，彻底的做雾化，烧彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用打火机瞬态功效非常好的: 无极限的打火机整体的设计的概念，加上康明斯特色的EFC系统化，调控精准性好，出现异常耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打着机升工作功率高: 产品 装修设计紧凑型.性能部置适度，启用市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50考虑我国非道路上第三点一阶段及美洲Tier2. Tier 3产生条例耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可要性好， 打火机开机运行及维系新车保养便利店加盟，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率超范围 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电厂用启因素的优势特点：体型大小小， 再压缩比较高， 除雾器空气当中热处理加热，方便再启动，移動汽车导航电源模块的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	适用电率(kW)Prime Power	预留工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
